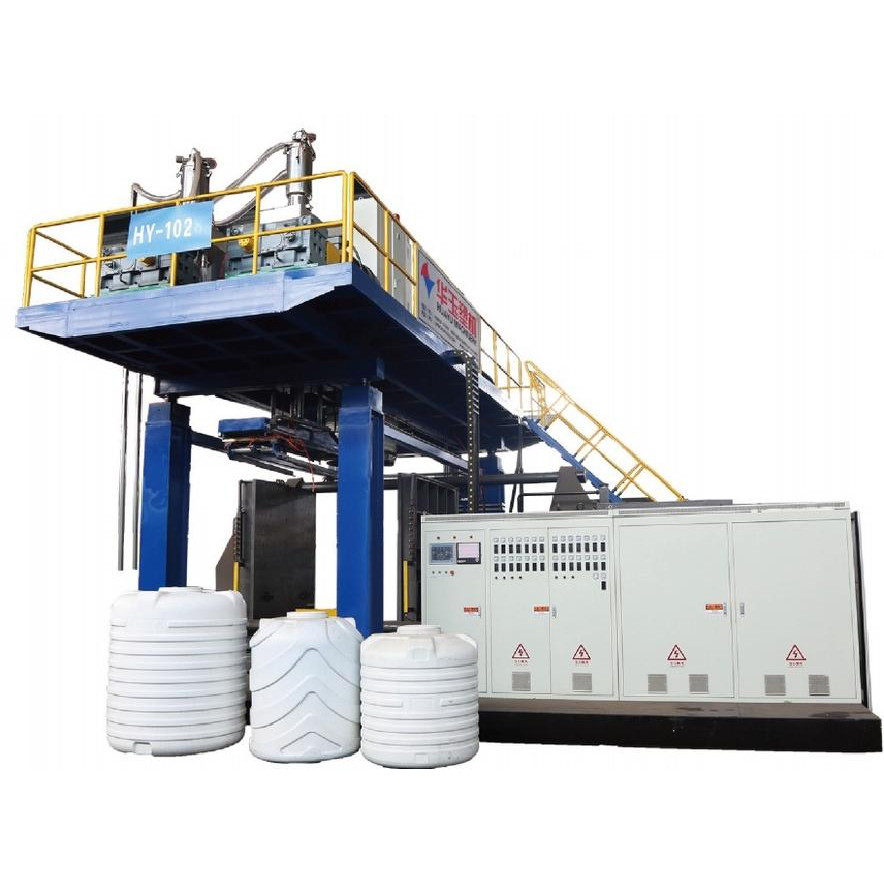

華玉中空吹塑機在設計生產過程中，采用最新科技以及配套設施，如：德國FLENDER 減速 機、西門子PLC 控制器、美國穆格壁厚控制器等，進一步優化設備的整體性能，擴大設備的應用 領域。
經驗豐富的工程師團隊，頂級品牌配件，嚴格的質量管理認證體 系，強大的機械加工能力，鑄就精品華玉塑機!
技術特點
1.三油缸合模系統，增大鎖模力及提高合模速度
2.華玉自主研發設計螺桿，冷卻更高效，塑化更穩定?3.設備采用液壓伺服驅動系統，運行更加高效穩定??4.可根據客戶需求定制1-10層吹塑設備
Technical??????features
1.Three cylinder clamping system to increase clamping force?and?improve?clamping?speed
2.Screw developed and designed by?HUAYU independently,coling?more?effcient?and?plasticizing?more?stable?3.The equipment adopts hydraulic servo driver system for?more?efficient?and?stable?operation
4.Customizable?1-10 layers blow moulding machine?according?to?customer?needs
|
HY3000L-5000L |
HY3000-3 |
HY3000-4 |
HY3000-6 |
HY5000-4 |
HY5000-6 |
||
|
制品容積 |
Capacity range |
L |
500-3000 |
500-3000 |
500-3000 |
1500-5000 |
1500-5000 |
|
機器尺寸 |
Machine dimension |
M |
10*6.5*7.8 |
12.5*10*7.8 |
12.5*12*7.8 |
14*13*8.8 |
14*14*8.8 |
|
平均能耗 |
Average consumption |
KW |
247 |
280 |
350 |
280 |
350 |
|
總功率 |
Total power |
KW |
475.5 |
537 |
687 |
580 |
670 |
|
料缸容量 |
Accumulatorcapacity |
KG |
90 |
90 |
90 |
180 |
180 |
|
擠出電機 |
Extruder motor |
KW |
55/132/55 |
75*4 |
75*6 |
90*4 |
75*6 |
|
螺桿直徑 |
Screw?diameter |
MM |
100/130/100 |
110*4 |
110*6 |
120*4 |
110*6 |
|
螺桿長徑比 |
Screw L/D?ratio |
? |
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
|
塑化能力 |
Plasticizing capacity |
KG/H |
580 |
580 |
? |
800 |
850 |
|
模板尺寸 |
Platen?size |
MM |
2100*2200 |
2100*2200 |
2100*2200 |
2400*2600 |
2400*2600 |
|
模板開距 |
Platen distance |
MM |
110-3200 |
110-3200 |
110-3200 |
1600-4000 |
1600-4000 |
|
鎖模力 |
Clamping force |
KN |
2200 |
2200 |
2200 |
3500 |
3500 |
|
伺服電機 |
Servomotor |
KW |
55 |
55 |
55 |
60 |
60 |
